MST恩司迪 F63-CTH10/CTH20系列 彈簧筒夾刀
品牌:MST(恩司迪)
型號:F63-CTH10/CTH20
¥待詢價(提交訂單10分鐘內獲取專屬報價單)
1、由思誠資源優選發貨,并提供售后服務
2、因庫存實時變化,具體發貨時間以實際發貨為準

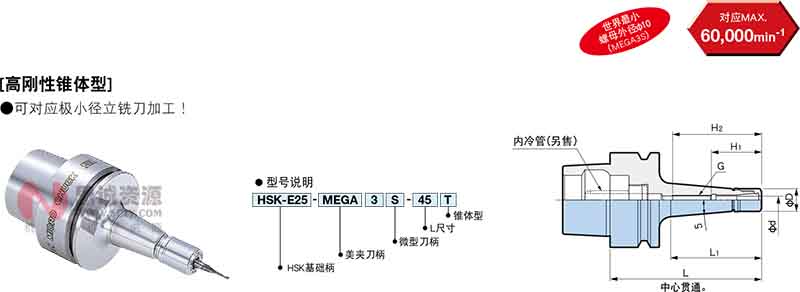

BIG(大昭和)區域經理 李經理:18929218517咨詢型號 | 夾持直徑 φd | φD | L | L1 | H1 | H2 | G | 對應夾套 | 質量 (kg) |
HSK-E25-MEGA3S-45T※ | 0.45 ~ 3.25 | 10 | 45 | 32 | 22 | (32) | - | NBC3S-□ | 0.06 |
HSK-E25-MEGA3S-60T | 60 | 48 | 38 | M4 P0.7 | 0.08 | ||||
HSK-E25-MEGA4S-45T※ | 0.45 ~ 4.05 | 12 | 45 | 33 | 26.5 | (32) | - | NBC4S-□ | 0.07 |
HSK-E25-MEGA4S-60T | 60 | 49 | 41 | M5 P0.8 | 0.10 | ||||
HSK-E25-MEGA6S-45T※ | 0.45 ~ 6.05 | 14 | 45 | 33 | 28.5 | (31) | - | NBC6S-□ | 0.08 |
HSK-E25-MEGA6S-60T | 60 | 49 | 40 | M7 P0.75 | 0.10 | ||||
HSK-E32-MEGA3S-60T | 0.45 ~ 3.25 | 10 | 60 | 35 | 22 | 38 | M4 P0.7 | NBC3S-□ | 0.15 |
HSK-E32-MEGA3S-75T | 75 | 50 | 38 | 0.17 | |||||
HSK-E32-MEGA4S-45T※ | 0.45 ~ 4.05 | 12 | 45 | 23 | 26.5 | (26) | - | NBC4S-□ | 0.14 |
HSK-E32-MEGA4S-60T | 60 | 35 | 46 | M5 P0.8 | 0.16 | ||||
HSK-E32-MEGA6S-45T※ | 0.45 ~ 6.05 | 14 | 45 | 23 | 28.5 | (28) | - | NBC6S-□ | 0.14 |
HSK-E32-MEGA6S-60T | 60 | 36 | 38 | M7 P0.75 | 0.17 | ||||
HSK-E32-MEGA8S-60T※ | 2.95 ~ 8.05 | 18 | 60 | 38 | 31 | (43) | - | NBC8S-□ | 0.20 |
HSK-E40-MEGA3S-60T | 0.45 ~ 3.25 | 10 | 60 | 35 | 22 | 39 | M4 P0.7 | NBC3S-□ | 0.23 |
HSK-E40-MEGA3S-75T | 75 | 50 | 38 | 0.25 | |||||
HSK-E40-MEGA4S-60T | 0.45 ~ 4.05 | 12 | 60 | 35 | 26.5 | 44 | M5 P0.8 | NBC4S-□ | 0.24 |
HSK-E40-MEGA4S-75T | 75 | 50 | 47 | 0.27 | |||||
HSK-E40-MEGA6S-60T※ | 0.45 ~ 6.05 | 14 | 60 | 35 | 28.5 | (42) | - | NBC6S-□ | 0.24 |
HSK-E40-MEGA6S-75T | 75 | 50 | 49 | M7 P0.75 | 0.28 | ||||
HSK-E40-MEGA6S-90T | 90 | 65 | 49 | 0.32 | |||||
HSK-E50-MEGA3S-80T | 0.45 ~ 3.25 | 10 | 80 | 49 | 22 | 38 | M4 P0.7 | NBC3S-□ | 0.5 |
HSK-E50-MEGA4S-80T | 0.45 ~ 4.05 | 12 | 48 | 26.5 | 47 | M5 P0.8 | NBC4S-□ | 0.5 | |
HSK-E50-MEGA6S-80T | 0.45 ~ 6.05 | 14 | 49 | 28.5 | 49 | M7 P0.75 | NBC6S-□ | 0.5 |

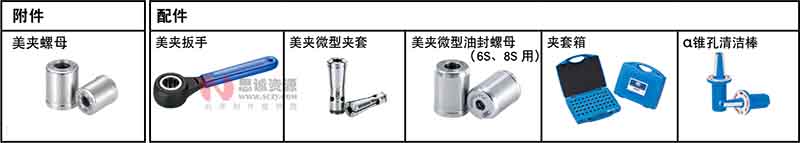

1. 附帶螺母。夾套、扳手請另行訂購。
2. 帶※型號的不可使用軸向調節螺絲。H2()中的尺寸為最大刃具插入量。
3. 請注意: 使用時的轉速受機床剛性和刃具平衡性的影響較大。
因此,請將機床轉速從低速開始,緩慢調整至合適的轉速。
4. 不附帶內冷管。
?

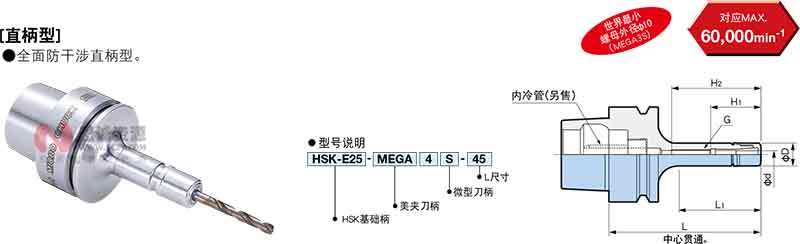

型號 | 夾持直徑 φd | φD | L | L1 | H1 | H2 | G | 對應夾套 | 質量 (kg) |
HSK-E25-MEGA4S-45※ | 0.45 ~ 4.05 | 12 | 45 | 31 | 26.5 | (32) | - | NBC4S-□ | 0.06 |
HSK-E25-MEGA4S-60 | 60 | 46 | 42 | M5 P0.8 | 0.08 | ||||
HSK-E25-MEGA6S-45※ | 0.45 ~ 6.05 | 14 | 45 | 32 | 28 | (31) | - | NBC6S-□ | 0.07 |
HSK-E25-MEGA6S-60 | 60 | 47 | 28.5 | 41 | M7 P0.75 | 0.08 | |||
HSK-E32-MEGA3S-45※ | 0.45 ~ 3.25 | 10 | 45 | 23 | 22 | (31) | - | NBC3S-□ | 0.13 |
HSK-E32-MEGA4S-45 | 0.45 ~ 4.05 | 12 | 45 | 22 | 26.5 | 31 | M5 P0.8 | NBC4S-□ | 0.14 |
HSK-E32-MEGA4S-60 | 60 | 34 | 46 | 0.15 | |||||
HSK-E32-MEGA6S-45※ | 0.45 ~ 6.05 | 14 | 45 | 22 | 28.5 | (28) | - | NBC6S-□ | 0.14 |
HSK-E32-MEGA6S-60 | 60 | 35 | 38 | M7 P0.75 | 0.15 | ||||
HSK-E40-MEGA3S-40※ | 0.45 ~ 3.25 | 10 | 40 | 19 | 22 | (24) | - | NBC3S-□ | 0.21 |
HSK-E40-MEGA4S-60 | 0.45 ~ 4.05 | 12 | 60 | 34 | 26.5 | 44 | M5 P0.8 | NBC4S-□ | 0.23 |
HSK-E40-MEGA6S-45※ | 0.45 ~ 6.05 | 14 | 45 | 23 | 27.5 | (27) | - | NBC6S-□ | 0.22 |
HSK-E40-MEGA6S-60※ | 60 | 35 | 28.5 | (42) | - | 0.23 | |||
HSK-E50-MEGA3S-50※ | 0.45 ~ 3.25 | 10 | 50 | 20 | 22 | (30) | - | NBC3S-□ | 0.5 |
HSK-E50-MEGA4S-50※ | 0.45 ~ 4.05 | 12 | 50 | 21 | 26.5 | (30) | - | NBC4S-□ | 0.5 |
HSK-E50-MEGA4S-80 | 80 | 44 | 47 | M5 P0.8 | 0.5 | ||||
HSK-E50-MEGA6S-55※ | 0.45 ~ 6.05 | 14 | 55 | 26 | 28.5 | (35) | - | NBC6S-□ | 0.5 |
HSK-E50-MEGA6S-80 | 80 | 44 | 49 | M7 P0.75 | 0.5 |
1. 附帶螺母。夾套、扳手請另行訂購。
2. 帶※型號的不可使用軸向調節螺絲。H2( )中的尺寸為最大刃具插入量。
3. 請注意: 使用時的轉速受機床剛性和刃具平衡性的影響較大。
因此,請將機床轉速從低速開始,緩慢調整至合適的轉速。
4. 不附帶內冷管。
?
