日本BIG液壓直桿刀柄ST
品牌:BIG(大昭和)
型號:ST20-HDC4S-180
¥待詢價(提交訂單10分鐘內獲取專屬報價單)
1、由思誠資源優選發貨,并提供售后服務
2、因庫存實時變化,具體發貨時間以實際發貨為準
BIG(大昭和)區域經理 李經理:18929218517咨詢適用于汽車零部件加工、模具加工等所有高精度加工。

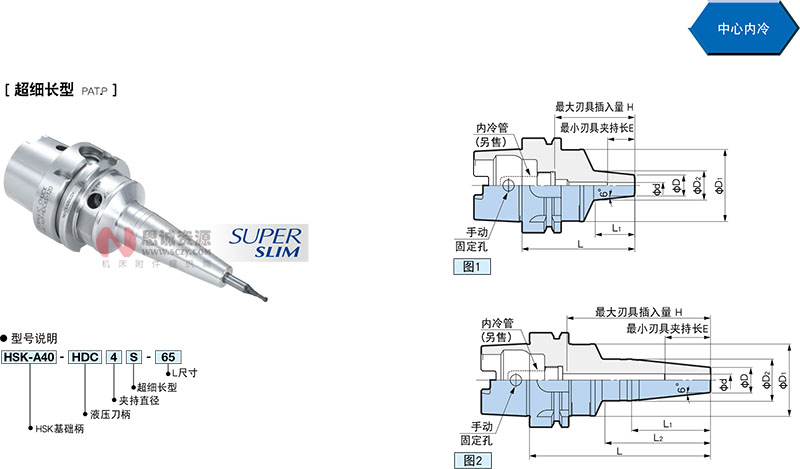

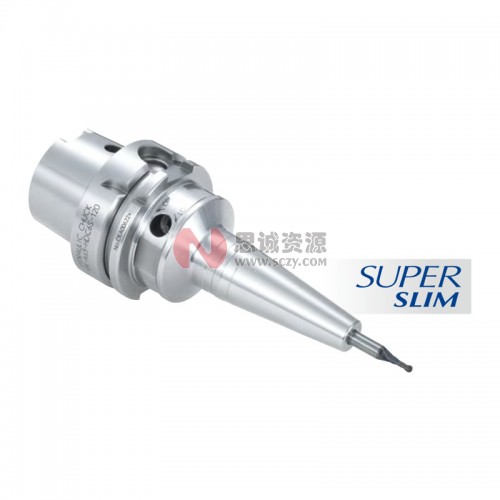

采用將工件干涉控制在最小限度的纖細設計,最適用于雕模加工。
型號 | 圖 | 夾持直徑 φd | φD | φD1 | φD2 | L | L1 | L2 | 最大刃具插入量 H | 最小刃具夾持長 E | 質量 |
HSK-A40-HDC4S-65 | 1 | 4 | 14 | 33 | 21 | 65 | 28 | 一 | 49 | 19 | 0.33 |
HSK-A50-HDC4S-75 | 1 | 4 | 14 | 40 | 21 | 75 | 31 | 一 | 55 | 19 | 0.8 |
HSK-A63-HDC3S-90 | 1 | 3 | 14 | 48 | 24 | 90 | 43 | 一 | 68 | 16 | 1.1 |
HSK-A63-HDC4S-75 | 4 | 20 | 75 | 26 | 53 | 19 | 1.0 | ||||
HSK-A63-HDC4S-120 | 2 | 26 | 120 | 57 | 72 | 98 | 1.1 | ||||
HSK-A63-HDC6S-120 | 6 | 70 | 98 | 25 | |||||||
HSK-A63-HDC6S-150 | 150 | 85 | 128 | 1.3 | |||||||
HSK-A63-HDC8S-120 | 8 | 17 | 28 | 120 | 52 | 70 | 95 | 31 | 1.2 | ||
HSK-A63-HDC8S-150 | 150 | 85 | 125 | 1.3 | |||||||
HSK-A63-HDC10S-120 | 10 | 19 | 30 | 120 | 70 | 94 | 33 | 1.2 | |||
HSK-A63-HDC10S-150 | 150 | 87 | 124 | 1.4 | |||||||
HSK-A63-HDC12S-120 | 12 | 21 | 32 | 120 | 70 | 93 | 36 | 1.2 | |||
HSK-A63-HDC12S-150 | 150 | 87 | 123 | 1.4 |
?
?

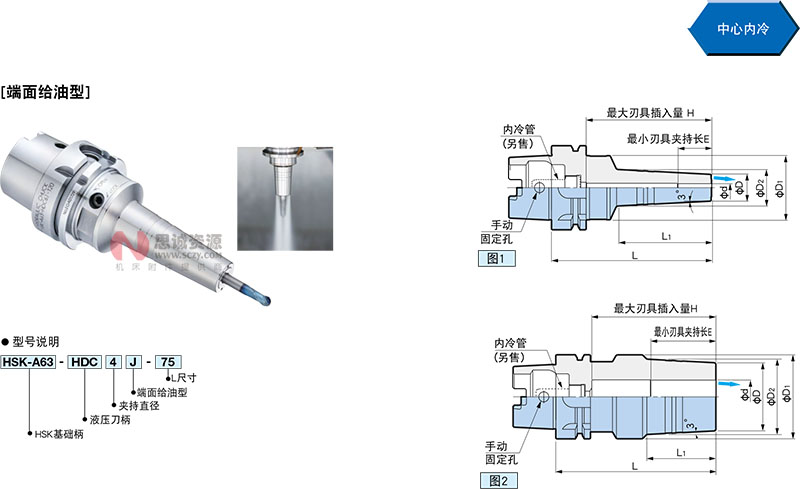

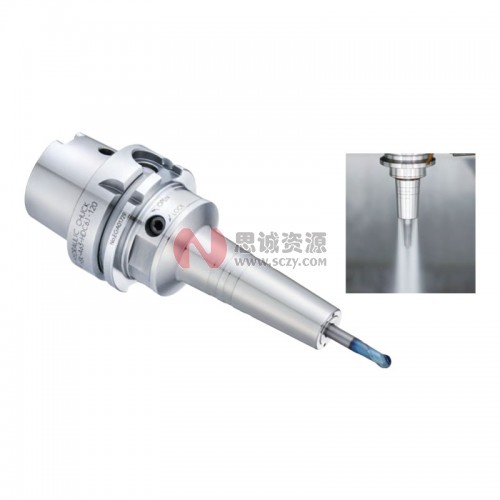

型號 | 圖 | 夾持直徑 φd | φD | φD1 | φD2 | L | L1 | 最大刃具插入量 H | 最小刃具夾持長 E | 質量 (kg) |
HSK-A63-HDC4J-75 | 1 | 4 | 20 | 48 | 23 | 75 | 29 | 53 | 19 | 1.0 |
HSK-A63-HDC6J-120 | 6 | 28 | 120 | 70 | 98 | 25 | 1.2 | |||
HSK-A63-HDC8J-120 | 8 | 22 | 30 | 95 | 31 | 1.2 | ||||
HSK-A63-HDC10J-120 | 10 | 24 | 32 | 94 | 33 | 1.3 | ||||
HSK-A63-HDC12J-120 | 12 | 26 | 34 | 93 | 36 | 1.3 | ||||
HSK-A63-HDC16J-120 | 16 | 34 | 43 | 76 | 92 | 43 | 1.5 | |||
HSK-A63-HDC20J-120 | 20 | 38 | 91 | 1.5 | ||||||
NEW-HDC25J-120 | 2 | 25 | 51 | 63 | 57 | 50 | 93 | 49 | 2.1 | |
NEW-HDC32J-120 | 32 | 60 | 69 | – | 53 | 56 | 2.3 |

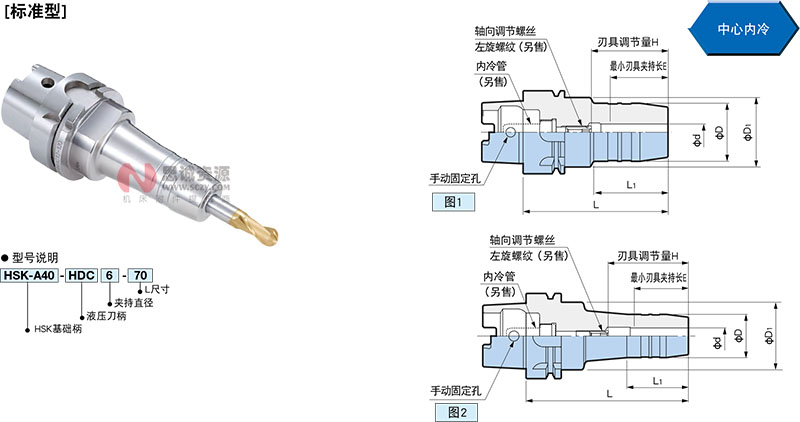

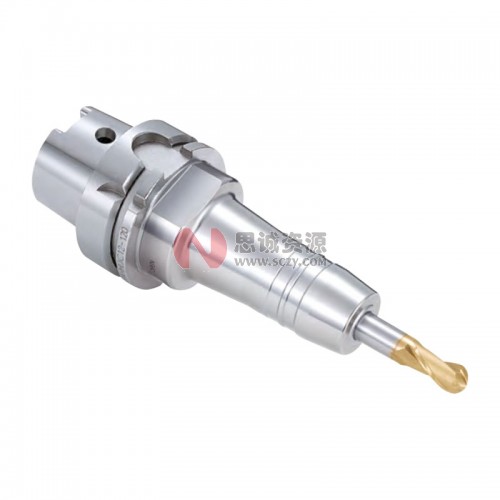

型號 | 圖 | 夾持直徑 φd | φD | φD1 | L | L1 | 刃具調節量 H | 最小刃具夾持長 E | 軸向調節螺絲 (另售) | 質量 (kg) |
HSK-A40-HDC6-70 | 1 | 6 | 26 | 34 | 70 | 36 | 28 ~ 36 | 28 | HDA 6-05013 | 0.47 |
HSK-A40-HDC8-70 | 8 | 28 | HDA 8-06013 | 0.48 | ||||||
HSK-A40-HDC10-75 | 10 | 30 | 75 | 41 | 33 ~ 41 | 33 | 0.50 | |||
HSK-A40-HDC12-80 | 12 | 32 | 80 | 46 | 38 ~ 45 | 38 | 0.55 | |||
HSK-A50-HDC6-75 | 1 | 6 | 26 | 42 | 75 | 32 | 28 ~ 37 | 28 | HDA 6-05013 | 0.7 |
HSK-A50-HDC8-75 | 8 | 28 | HDA 8-06013 | 0.7 | ||||||
HSK-A50-HDC10-80 | 10 | 30 | 80 | 37 | 33 ~ 41 | 33 | HDA10-08015 | 0.7 | ||
HSK-A50-HDC12-85 | 12 | 32 | 85 | 42 | 38 ~ 46 | 38 | 0.8 | |||
HSK-A50-HDC16-90▲ | 16 | 38 | 90 | 48 | 43 ~ 51 | 43 | 0.9 | |||
HSK-A50-HDC20-90▲ | 20 | 42 | 一 | 64 | 0.9 | |||||
HSK-A50-HDC25-90※▲ | 25 | 55 | 63 | 23 | 62 | 52 | 一 | 1.3 | ||
HSK-A63-HDC6-70※ | 2 | 6 | 26 | 50 | 70 | 24 | 46 | 28 | 一 | 1.0 |
HSK-A63-HDC6-120 | 120 | 44 | 28 ~ 48 | HDA 6-05032 | 1.2 | |||||
HSK-A63-HDC6-150 | 150 | 1.4 | ||||||||
HSK-A63-HDC7-120 | 7 | 27 | 120 | 1.3 | ||||||
HSK-A63-HDC8-70※ | 8 | 28 | 70 | 24 | 46 | - | 1.0 | |||
HSK-A63-HDC8-120 | 120 | 44 | 28 ~ 48 | HDA 8-06032 | 1.3 | |||||
HSK-A63-HDC8-150 | 150 | 1.5 | ||||||||
HSK-A63-HDC9-120 | 9 | 29 | 120 | 1.3 | ||||||
HSK-A63-HDC10-80※ | 10 | 30 | 80 | 35 | 55 | 33 | - | 1.1 | ||
HSK-A63-HDC10-120 | 120 | 45 | 33 ~ 53 | HDA10-08032 | 1.3 | |||||
HSK-A63-HDC10-150 | 150 | 1.6 | ||||||||
HSK-A63-HDC11-120 | 11 | 31 | 120 | 1.4 | ||||||
HSK-A63-HDC12-85※ | 12 | 32 | 85 | 40 | 60 | 38 | - | 1.1 | ||
HSK-A63-HDC12-120 | 120 | 45 | 38 ~ 58 | HDA12-10025 | 1.4 | |||||
HSK-A63-HDC12-150 | 150 | 1.6 |

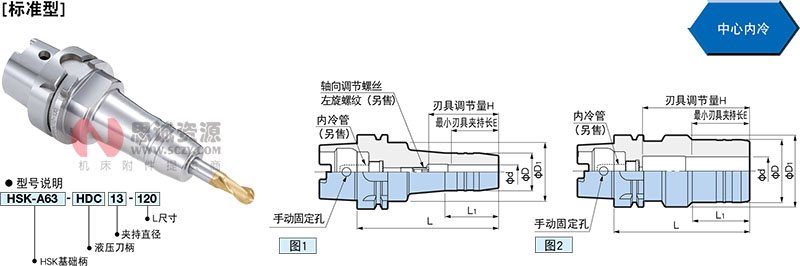

型號 | 圖 | 夾持直徑 φd | φD | φD1 | L | L1 | 刃具調節量 H | 最小刃具夾持長 E | 軸向調節螺絲 (另售) | 質量 (kg) |
HSK-A63-HDC13-120 | 1 | 13 | 33 | 50 | 120 | 45 | 38 ~ 58 | 38 | HDA12-10025 | 1.4 |
HSK-A63-HDC14-85※ | 14 | 34 | 85 | 40 | 60 | - | 1.2 | |||
HSK-A63-HDC14-120 | 120 | 45 | 38 ~ 58 | HDA12-10025 | 1.4 | |||||
HSK-A63-HDC14-150 | 150 | 1.7 | ||||||||
HSK-A63-HDC15-120 | 15 | 37 | 120 | 58 ~ 68 | 43 | HDA16-12015 | 1.5 | |||
HSK-A63-HDC16-90※ | 16 | 38 | 90 | 46 | 65 | 43 | - | 1.3 | ||
HSK-A63-HDC16-120 | 120 | 58 ~ 68 | HDA16-12015 | 1.5 | ||||||
HSK-A63-HDC16-150 | 150 | 43 ~ 68 | HDA16-12037 | 1.9 | ||||||
HSK-A63-HDC18-90※ | 18 | 40 | 90 | 46 | 65 | - | 1.3 | |||
HSK-A63-HDC18-120 | 120 | 58 ~ 68 | HDA20-16015 | 1.6 | ||||||
HSK-A63-HDC18-150 | 150 | 43 ~ 68 | HDA25-16039 | 2.0 | ||||||
HSK-A63-HDC20-90※ | 20 | 42 | 90 | 48 | 65 | - | 1.3 | |||
HSK-A63-HDC20-120 | 120 | 58 ~ 68 | HDA20-16015 | 1.6 | ||||||
HSK-A63-HDC20-150 | 150 | 43 ~ 68 | HDA25-16039 | 2.0 | ||||||
HSK-A63-HDC25-120※ | 2 | 25 | 55 | 63 | 120 | 51 | 95 | 52 | - | 2.1 |
HSK-A63-HDC32-125※ | 32 | 60 | 69 | 125 | 59 | 100 | 56 | 2.4 | ||
HSK-A100-HDC6-75※ | 1 | 6 | 26 | 50 | 75 | 26 | 46 | 28 | - | 2.4 |
HSK-A100-HDC6-120 | 120 | 44 | 28 ~ 48 | HDA 6-05032 | 2.6 | |||||
HSK-A100-HDC6-165 | 165 | 2.9 | ||||||||
HSK-A100-HDC8-75※ | 8 | 28 | 75 | 26 | 46 | - | 2.4 | |||
HSK-A100-HDC8-120 | 120 | 44 | 28 ~ 48 | HDA 8-06032 | 2.6 | |||||
HSK-A100-HDC8-165 | 165 | 3.0 | ||||||||
HSK-A100-HDC10-90※ | 10 | 30 | 90 | 42 | 61 | 33 | - | 2.5 | ||
HSK-A100-HDC10-120 | 120 | 45 | 33 ~ 53 | HDA10-08032 | 2.7 | |||||
HSK-A100-HDC10-165 | 165 | 3.1 | ||||||||
HSK-A100-HDC12-95※ | 12 | 32 | 95 | 47 | 63 | 38 | - | 2.5 | ||
HSK-A100-HDC12-120 | 120 | 38 ~ 58 | HDA12-10025 | 2.7 | ||||||
HSK-A100-HDC12-165 | 165 | HDA12-10032 | 3.1 | |||||||
HSK-A100-HDC16-100※ | 16 | 38 | 100 | 53 | 68 | 43 | - | 2.6 | ||
HSK-A100-HDC16-135 | 135 | 43 ~ 68 | HDA16-12030 | 3.0 | ||||||
HSK-A100-HDC16-165 | 165 | HDA16-12037 | 3.3 | |||||||
HSK-A100-HDC20-105※ | 20 | 42 | 105 | 59 | 73 | - | 2.7 | |||
HSK-A100-HDC20-135 | 135 | 58 ~ 68 | HDA20-16015 | 3.1 | ||||||
HSK-A100-HDC20-165 | 165 | 43 ~ 68 | HDA25-16039 | 3.6 | ||||||
HSK-A100-HDC25-110※ | 25 | 55 | 63 | 110 | 62 | 78 | 52 | - | 3.3 | |
HSK-A100-HDC32-110※ | 32 | 64 | 75 | 56 | 3.7 |
