日本佑能UNION 4刃CRN-ES4000平刀立銑刀 平
品牌:UNION(佑能)
型號:G5ACC641C8F5B8
¥待詢價(提交訂單10分鐘內獲取專屬報價單)
1、由思誠資源優選發貨,并提供售后服務
2、因庫存實時變化,具體發貨時間以實際發貨為準
UNION(佑能)區域經理 李經理:18929218517咨詢加工材料 | |||||||||||||||
碳素鋼 S45C S55C | 合金鋼 SK/SCM SUS | 預硬鋼 NAK HPM | 淬火鋼 | 鑄鐵 | 鋁合金 | 石墨 | 銅 | 樹脂 | 玻璃纖維 樹脂 | 鈦合金 | 高溫合金 | 超硬合金 | 硬脆材料 | ||
~55HRC | ~60HRC | ~70HRC | |||||||||||||
◎ | ◎ | ◎ | ○ | ○ | ◎ | ○ | ○ |

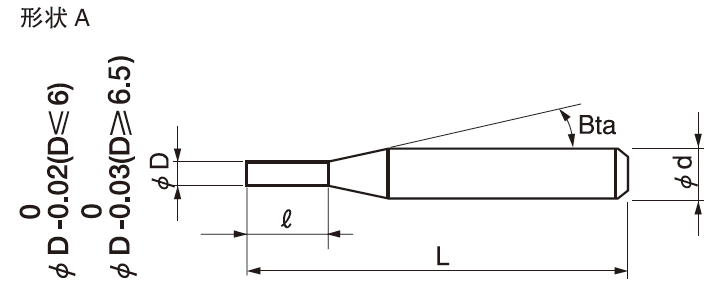

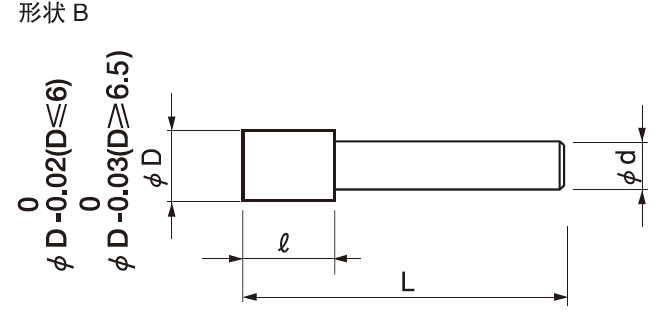

型號 | 直徑 φD | 刃長 R | 柄錐角度 Bta | 全長 L | 柄徑 φd | 形狀 |
CXES 4010-0250 | 1 | 2.5 | 16° | 50 | 4 | A |
CXES 4015-0375 | 1.5 | 3.75 | 16° | 50 | 4 | A |
CXES 4020-0500 | 2 | 5 | 16° | 50 | 4 | A |
CXES 4025-0625 | 2.5 | 6.25 | 16° | 50 | 4 | A |
CXES 4030-0750 | 3 | 7.5 | 16° | 50 | 6 | A |
CXES 4030-0900 | 9 | 60 | 6 | A |
CXES 4035-0900 | 3.5 | 9 | 16° | 60 | 6 | A |
CXES 4040-1000 | 4 | 10 | 16° | 50 | 6 | A |
CXES 4040-1200 | 12 | 60 | 6 | A | ||
CXES 4045-1150 | 4.5 | 11.5 | 16° | 60 | 6 | A |
CXES 4050-1250 | 5 | 12.5 | 16° | 50 | 6 | A |
CXES 4050-1500 | 15 | 60 | 6 | A | ||
CXES 4055-1400 | 5.5 | 14 | 16° | 60 | 6 | A |
CXES 4060-1500 | 6 | 15 | — | 50 | 6 | A |
CXES 4060-1800 | 18 | 60 | 6 | A | ||
CXES 4065-1650 | 6.5 | 16.5 | 16° | 60 | 8 | A |
CXES 4070-1050 | 7 | 10.5 | — | 100 | 6 | B |
CXES 4075-1900 | 7.5 | 19 | 16° | 60 | 8 | A |
CXES 4080-2000 | 8 | 20 | — | 60 | 8 | A |
CXES 4080-2400 | 24 | 70 | 8 | A | ||
CXES 4085-2150 | 8.5 | 21.5 | 16° | 70 | 10 | A |
CXES 4090-1350 | 9 | 13.5 | — | 140 | 8 | B |
CXES 4095-2400 | 9.5 | 24 | 16° | 70 | 10 | A |
CXES 4100-2500 | 10 | 25 | — | 70 | 10 | A |
CXES 4100-3000 | 30 | 80 | 10 | A | ||
CXES 4110-1650 | 11 | 16.5 | — | 150 | 10 | B |
CXES 4120-3000 | 12 | 30 | — | 90 | 12 | A |
CXES 4120-3600 | 36 | 100 | 12 | A | ||
CXES 4130-1950 | 13 | 19.5 | — | 160 | 12 | B |
CXES 4160-4000 | 16 | 40 | — | 110 | 16 | A |
加工材料 | 碳素鋼 S45C/S50C退火材料 (~225HB) | 合金鋼 SK/SCM退火材料 (225~325HB) | 不銹鋼 SUS304 注:必須適用切削液 | |||||||||||
型號 | 直徑 (mm) | 刃長 (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | ae (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | ae (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | ae (mm) |
4010-0250 | 1 | 2.5 | 18,000 | 620 | 2.5 | 0.2 | 18,000 | 460 | 2.5 | 0.2 | 14,500 | 320 | 2.5 | 0.1 |
4015-0375 | 1.5 | 3.75 | 13,500 | 770 | 3.75 | 0.3 | 13,500 | 570 | 3.75 | 0.3 | 13,300 | 340 | 3.75 | 0.15 |
4020-0500 | 2 | 5 | 11,000 | 930 | 5 | 0.4 | 11,000 | 690 | 5 | 0.4 | 12,200 | 360 | 5 | 0.2 |
4025-0625 | 2.5 | 6.25 | 9,500 | 1,060 | 6.25 | 0.5 | 9,500 | 800 | 6.25 | 0.5 | 11,000 | 490 | 6.25 | 0.25 |
4030-0750 | 3 | 7.5 | 8,500 | 1,200 | 7.5 | 0.6 | 8,500 | 900 | 7.5 | 0.6 | 10,000 | 640 | 7.5 | 0.3 |
4030-0900 | 9 | 8,500 | 1,200※ | 9 | 0.3 | 8,500 | 900※ | 9 | 0.3 | 9,100 | 580※ | 9 | 0.15 | |
4035-0900 | 3.5 | 9 | 7,800 | 1,250 | 9 | 0.7 | 7,500 | 950 | 9 | 0.7 | 8,600 | 680 | 9 | 0.35 |
4040-1000 | 4 | 10 | 7,200 | 1,350 | 10 | 0.8 | 6,700 | 1,000 | 10 | 0.8 | 7,500 | 730 | 10 | 0.4 |
4040-1200 | 12 | 7,200 | 1,350※ | 12 | 0.4 | 6,700 | 1,000※ | 12 | 0.4 | 6,600 | 640※ | 12 | 0.2 | |
4045-1150 | 4.5 | 11.5 | 6,550 | 1,400 | 11.5 | 0.9 | 6,000 | 1,050 | 11.5 | 0.9 | 6,300 | 770 | 11.5 | 0.45 |
4050-1250 | 5 | 12.5 | 6,000 | 1,500 | 12.5 | 1 | 5,400 | 1,100 | 12.5 | 1 | 5,400 | 810 | 12.5 | 0.5 |
4050-1500 | 15 | 6,000 | 1,500※ | 15 | 0.5 | 5,400 | 1,100※ | 15 | 0.5 | 4,600 | 690※ | 15 | 0.25 | |
4055-1400 | 5.5 | 14 | 5,450 | 1,550 | 14 | 1.1 | 4,900 | 1,150 | 14 | 1.1 | 4,900 | 810 | 14 | 0.55 |
4060-1500 | 6 | 15 | 5,000 | 1,600 | 15 | 1.2 | 4,500 | 1,200 | 15 | 1.2 | 4,500 | 810 | 15 | 0.6 |
4060-1800 | 18 | 5,000 | 1,600※ | 18 | 0.6 | 4,500 | 1,200※ | 18 | 0.6 | 3,700 | 660※ | 18 | 0.3 | |
4065-1650 | 6.5 | 16.5 | 4,400 | 1,500 | 16.5 | 1.3 | 3,950 | 1,150 | 16.5 | 1.3 | 3,950 | 780 | 16.5 | 0.65 |
4070-1050 | 7 | 10.5 | 3,900 | 1,450※ | 10.5 | 0.7 | 3,550 | 1120※ | 10.5 | 0.7 | 3,550 | 760※ | 10.5 | 0.35 |
4075-1900 | 7.5 | 19 | 3,500 | 1,400 | 19 | 1.5 | 3,250 | 1,100 | 19 | 1.5 | 3,250 | 750 | 19 | 0.75 |
4080-2000 | 8 | 20 | 3,000 | 1,300 | 20 | 1.6 | 2,900 | 1,050 | 20 | 1.6 | 2,900 | 720 | 20 | 0.8 |
4080-2400 | 24 | 2,800 | 1,230※ | 24 | 0.8 | 2,600 | 1,050※ | 24 | 0.8 | 2,600 | 600※ | 24 | 0.4 | |
4085-2150 | 8.5 | 21.5 | 2,550 | 1,200 | 21.5 | 1.7 | 2,450 | 1,000 | 21.5 | 1.7 | 2,450 | 680 | 21.5 | 0.85 |
4090-1350 | 9 | 13.5 | 2,250 | 1,150※ | 13.5 | 0.9 | 2,150 | 980※ | 13.5 | 0.9 | 2,150 | 650※ | 13.5 | 0.45 |
4095-2400 | 9.5 | 24 | 1,950 | 1,050 | 24 | 1.9 | 1,900 | 950 | 24 | 1.9 | 1,900 | 620 | 24 | 0.95 |
4100-2500 | 10 | 25 | 1,600 | 1,000 | 25 | 2 | 1,500 | 900 | 25 | 2 | 1,500 | 580 | 25 | 1 |
4100-3000 | 30 | 1,500 | 900※ | 30 | 1 | 1,500 | 850※ | 30 | 1 | 1,500 | 580※ | 30 | 0.5 | |
4110-1650 | 11 | 16.5 | 1,400 | 900※ | 16.5 | 1.1 | 1,350 | 830※ | 16.5 | 1.1 | 1,350 | 560※ | 16.5 | 0.55 |
4120-3000 | 12 | 30 | 1,200 | 800 | 30 | 2.4 | 1,200 | 750 | 30 | 2.4 | 1,200 | 540 | 30 | 1.2 |
4120-3600 | 36 | 1,150 | 750※ | 36 | 1.2 | 1,150 | 720※ | 36 | 1.2 | 1,150 | 540※ | 36 | 0.6 | |
4130-1950 | 13 | 19.5 | 1,100 | 650※ | 19.5 | 1.3 | 1,100 | 600※ | 19.5 | 1.3 | 1,000 | 460※ | 19.5 | 0.65 |
4160-4000 | 16 | 40 | 1,000 | 500 | 40 | 3.2 | 1,000 | 440 | 40 | 3.2 | 720 | 340 | 40 | 1.6 |

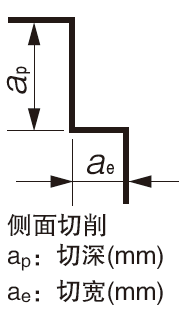

切深 (mm) | ap=全刃長 ae=0.2D ※ae=0.1D | ap=全刃長 ae=0.2D ※ae=0.1D | ap=全刃長 ae=0.1D ※ae=0.05D |
加工材料 | 預硬鋼 HPM/NAK (30~45HRC) | 淬火鋼 SKD/SKT/STAVAX (45~55HRC) | ||||||||
型號 | 直徑 (mm) | 刃長 (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | ae (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | ae (mm) |
4010-0250 | 1 | 2.5 | 12,900 | 320 | 2.5 | 0.2 | 12,900 | 180※ | 2.5 | 0.05 |
4015-0375 | 1.5 | 3.75 | 10,500 | 390 | 3.75 | 0.3 | 9,300 | 280※ | 3.75 | 0.075 |
4020-0500 | 2 | 5 | 9,350 | 450 | 5 | 0.4 | 7,600 | 390※ | 5 | 0.1 |
4025-0625 | 2.5 | 6.25 | 8,300 | 540 | 6.25 | 0.5 | 6,500 | 510※ | 6.25 | 0.125 |
4030-0750 | 3 | 7.5 | 7,400 | 630 | 7.5 | 0.6 | 5,900 | 500 | 7.5 | 0.3 |
4030-0900 | 9 | 7,050 | 630※ | 9 | 0.3 | 5,900 | 500※ | 9 | 0.15 | |
4035-0900 | 3.5 | 9 | 6,500 | 640 | 9 | 0.7 | 5,200 | 510 | 9 | 0.35 |
4040-1000 | 4 | 10 | 5,900 | 650 | 10 | 0.8 | 4,700 | 520 | 10 | 0.4 |
4040-1200 | 12 | 5,500 | 650※ | 12 | 0.4 | 4,700 | 520※ | 12 | 0.2 | |
4045-1150 | 4.5 | 11.5 | 5,300 | 660 | 11.5 | 0.9 | 4,250 | 520 | 11.5 | 0.45 |
4050-1250 | 5 | 12.5 | 4,800 | 680 | 12.5 | 1 | 3,850 | 530 | 12.5 | 0.5 |
4050-1500 | 15 | 4,400 | 680※ | 15 | 0.5 | 3,850 | 530※ | 15 | 0.25 | |
4055-1400 | 5.5 | 14 | 4,350 | 680 | 14 | 1.1 | 3,500 | 530 | 14 | 0.55 |
4060-1500 | 6 | 15 | 4,000 | 680 | 15 | 1.2 | 3,200 | 540 | 15 | 0.6 |
4060-1800 | 18 | 3,600 | 680※ | 18 | 0.6 | 3,200 | 540※ | 18 | 0.3 | |
4065-1650 | 6.5 | 16.5 | 3,500 | 660 | 16.5 | 1.3 | 2,850 | 530 | 16.5 | 0.65 |
4070-1050 | 7 | 10.5 | 3,150 | 640※ | 10.5 | 0.7 | 2,550 | 520※ | 10.5 | 0.35 |
4075-1900 | 7.5 | 19 | 2,850 | 620 | 19 | 1.5 | 2,250 | 510 | 19 | 0.75 |
4080-2000 | 8 | 20 | 2,500 | 600 | 20 | 1.6 | 2,000 | 500 | 20 | 0.8 |
4080-2400 | 24 | 2,350 | 600※ | 24 | 0.8 | 2,150 | 500※ | 24 | 0.4 | |
4085-2150 | 8.5 | 21.5 | 2,150 | 550 | 21.5 | 1.7 | 1,700 | 490 | 21.5 | 0.85 |
4090-1350 | 9 | 13.5 | 1,950 | 520※ | 13.5 | 0.9 | 1,500 | 480※ | 13.5 | 0.45 |
4095-2400 | 9.5 | 24 | 1,750 | 480 | 24 | 1.9 | 1,350 | 470 | 24 | 0.95 |
4100-2500 | 10 | 25 | 1,500 | 430 | 25 | 2 | 1,200 | 450 | 25 | 1 |
4100-3000 | 30 | 1,500 | 430※ | 30 | 1 | 1,200 | 450※ | 30 | 0.5 | |
4110-1650 | 11 | 16.5 | 1,250 | 380※ | 16.5 | 1.1 | 1,060 | 430※ | 16.5 | 0.55 |
4120-3000 | 12 | 30 | 1,000 | 320 | 30 | 2.4 | 960 | 420 | 30 | 1.2 |
4120-3600 | 36 | 1,000 | 320※ | 36 | 1.2 | 930 | 400※ | 36 | 0.6 | |
4130-1950 | 13 | 19.5 | 1,000 | 260※ | 19.5 | 1.3 | 890 | 350※ | 19.5 | 0.65 |
4160-4000 | 16 | 40 | 1,000 | 220 | 40 | 3.2 | 720 | 280 | 40 | 1.6 |
切深 (mm) | ap=全刃長 ae=0.2D ※ae=0.1D | ap=全刃長 ae=0.1D ※ae=0.05D |
加工材料 | 碳素鋼 S45C/S50C 退火材料 (~225HB) | 合金鋼 SK/SCM退火材料 (225~325HB) | 不銹鋼 SUS304 注:必須適用切削液 | 預硬鋼 HPM/NAK (30~45HRC) | 淬火鋼 SKD/SKT/STAVAX (45~55HRC) | ||||||||||||
型號 | 直徑 (mm) | 刃長 (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) | 轉速 (min-1) | 進給速度 (mm/min) | ap (mm) |
4010-0250 | 1 | 2.5 | 18,000 | 200 | 1 | 18,000 | 200 | 1 | 14,500 | 220 | 0.5 | 12,900 | 130 | 1 | 12,900 | 50※ | 0.3 |
4015-0375 | 1.5 | 3.75 | 13,500 | 320 | 1.5 | 13,500 | 280 | 1.5 | 13,300 | 240 | 0.75 | 10,500 | 180 | 1.5 | 10,500 | 100※ | 0.45 |
4020-0500 | 2 | 5 | 11,000 | 460 | 2 | 11,000 | 320 | 2 | 12,200 | 260 | 1 | 9,350 | 220 | 2 | 9,350 | 150※ | 0.6 |
4025-0625 | 2.5 | 6.25 | 9,500 | 540 | 2.5 | 9,500 | 360 | 2.5 | 11,000 | 310 | 1.25 | 8,300 | 270 | 2.5 | 8,300 | 240※ | 0.75 |
4030-0750 | 3 | 7.5 | 8,500 | 600 | 3 | 8,500 | 400 | 3 | 10,000 | 360 | 1.5 | 7,400 | 320 | 3 | 7,400 | 360 | 1.5 |
4030-0900 | 9 | 8,500 | 550 | 3 | 8,500 | 360 | 3 | 9,100 | 310 | 1.5 | 7,050 | 270 | 3 | 不可 | 不可 | 不可 | |
4035-0900 | 3.5 | 9 | 7,800 | 620 | 3.5 | 7,500 | 420 | 3.5 | 8,600 | 380 | 1.75 | 6,500 | 350 | 3.5 | 6,500 | 370 | 1.75 |
4040-1000 | 4 | 10 | 7,200 | 650 | 4 | 6,700 | 450 | 4 | 7,500 | 400 | 2 | 5,900 | 390 | 4 | 5,900 | 380 | 2 |
4040-1200 | 12 | 7,200 | 580 | 4 | 6,700 | 400 | 4 | 6,600 | 320 | 2 | 5,500 | 300 | 4 | 不可 | 不可 | 不可 | |
4045-1150 | 4.5 | 11.5 | 6,550 | 670 | 4.5 | 6,000 | 470 | 4.5 | 6,300 | 430 | 2.25 | 5,300 | 410 | 4.5 | 5,300 | 390 | 2.25 |
4050-1250 | 5 | 12.5 | 6,000 | 700 | 5 | 5,400 | 500 | 5 | 5,400 | 460 | 2.5 | 4,800 | 440 | 5 | 4,800 | 410 | 2.5 |
4050-1500 | 15 | 6,000 | 600 | 5 | 5,400 | 430 | 5 | 4,600 | 350 | 2.5 | 4,400 | 320 | 5 | 不可 | 不可 | 不可 | |
4055-1400 | 5.5 | 14 | 5,450 | 700 | 5.5 | 4,900 | 500 | 5.5 | 4,900 | 460 | 2.75 | 4,350 | 440 | 5.5 | 4,350 | 420 | 2.75 |
4060-1500 | 6 | 15 | 5,000 | 700 | 6 | 4,500 | 500 | 6 | 4,500 | 460 | 3 | 4,000 | 440 | 6 | 4,000 | 440 | 3 |
4060-1800 | 18 | 5,000 | 560 | 6 | 4,500 | 410 | 6 | 3,700 | 320 | 3 | 3,600 | 290 | 6 | 不可 | 不可 | 不可 | |
4065-1650 | 6.5 | 16.5 | 4,400 | 650 | 6.5 | 3,950 | 450 | 6.5 | 3,950 | 420 | 3.25 | 3,500 | 420 | 6.5 | 3,500 | 400 | 3.25 |
4070-1050 | 7 | 10.5 | 3,900 | 300 | 7 | 3,550 | 200 | 7 | 3,550 | 200 | 3.5 | 3,150 | 190 | 7 | 3,150 | 190 | 3.5 |
4075-1900 | 7.5 | 19 | 3,500 | 550 | 7.5 | 3,250 | 380 | 7.5 | 3,250 | 380 | 3.75 | 2,850 | 400 | 7.5 | 2,850 | 370 | 3.75 |
4080-2000 | 8 | 20 | 3,000 | 500 | 8 | 2,900 | 360 | 8 | 2,900 | 360 | 4 | 2,500 | 390 | 8 | 2,500 | 340 | 4 |
4080-2400 | 24 | 2,800 | 330 | 8 | 2,600 | 260 | 8 | 2,600 | 240 | 4 | 2,350 | 200 | 8 | 不可 | 不可 | 不可 | |
4085-2150 | 8.5 | 21.5 | 2,550 | 450 | 8.5 | 2,450 | 330 | 8.5 | 2,450 | 310 | 4.25 | 2,150 | 330 | 8.5 | 2,150 | 300 | 4.25 |
4090-1350 | 9 | 13.5 | 2,250 | 210 | 9 | 2,150 | 160 | 9 | 2,150 | 140 | 4.5 | 1,950 | 150 | 9 | 1,950 | 140 | 4.5 |
4095-2400 | 9.5 | 24 | 1,950 | 400 | 9.5 | 1,900 | 300 | 9.5 | 1,900 | 250 | 4.75 | 1,750 | 270 | 9.5 | 1,750 | 270 | 4.75 |
4100-2500 | 10 | 25 | 1,600 | 380 | 10 | 1,500 | 270 | 10 | 1,500 | 220 | 5 | 1,500 | 220 | 10 | 1,500 | 240 | 5 |
4100-3000 | 30 | 1,500 | 250 | 10 | 1,500 | 180 | 10 | 1,500 | 190 | 5 | 1,500 | 180※1 | 8 | 不可 | 不可 | 不可 | |
4110-1650 | 11 | 16.5 | 1,400 | 170 | 11 | 1,350 | 120 | 11 | 1,350 | 100 | 5.5 | 1,250 | 100 | 11 | 1,350 | 110 | 5.5 |
4120-3000 | 12 | 30 | 1,200 | 300 | 12 | 1,200 | 210 | 12 | 1,200 | 180 | 6 | 1,000 | 180 | 12 | 1,200 | 220 | 6 |
4120-3600 | 36 | 1,150 | 200 | 12 | 1,150 | 140 | 12 | 1,150 | 150 | 6 | 1,000 | 140※1 | 9.6 | 不可 | 不可 | 不可 | |
4130-1950 | 13 | 19.5 | 1,100 | 190 | 13 | 1,100 | 90 | 13 | 1,000 | 80 | 6.5 | 1,000 | 80 | 13 | 1,100 | 90 | 6.5 |
4160-4000 | 16 | 40 | 1,000 | 400※ | 8 | 1,000 | 280※ | 8 | 720 | 240※ | 4 | 1,000 | 240※2 | 8 | 1,000 | 220※ | 4.8 |

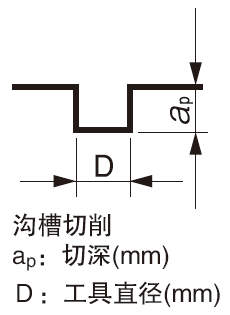

切深 (mm) | ap=1D ※ap=0.5D | ap=1D ※ap=0.5D | ap=0.5D ※ap=0.25D | ap=1D ※1 ap=0.8D ※2 ap=0.5D | ap=0.5D ※ap=0.3D |
