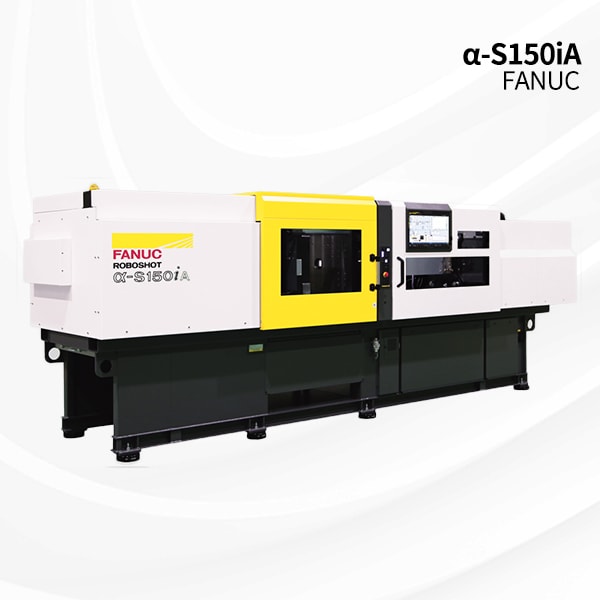

FANUC發那科 ROBOSHOT α-SiA系列 精密電動
型號：α-SiA系列
FANUC(發那科)預計30個工作日發貨
1、由思誠資源優選發貨，并提供售后服務
2、因庫存實時變化，具體發貨時間以實際發貨為準
思誠自營商城客服 電話：0769-22186189在線咨詢
| 項目 | 單位 | α-S150iA | ||||||||||||
| 鎖模部分 | 最大鎖模力 | kN | 1500(150tonf) | |||||||||||
| 雙模板 模厚(最大/最小) 單模板 | mm | 500/200 575/275 | ||||||||||||
| 開閉模行程 | mm | 440 | ||||||||||||
| 拉桿間距(寬×高) | mm | 560×510 | ||||||||||||
| 模板尺寸(寬×高) | mm | 800×750 | ||||||||||||
| 頂出點數/頂出力/頂出行程 | 點/kN/mm | 5 / 35(3.5tonf)/ 150 | ||||||||||||
| 射出部分 | 螺桿直徑 | mm | 22 | 26 | 28 | 32 | 36 | 40 | 32 | 36 | 40 | 44 | 48 | 52 |
| 最大射出體積 | cm3 | 29 | 50 | 58 | 103 | 147 | 181 | 121 | 153 | 188 | 268 | 318 | 442 | |
| 射出規格 | --- | 200mm/s 規格 | ||||||||||||
| 最大射出壓力 | MPa | --- | --- | --- | --- | --- | --- | 280 | 280 | 260 | 220 | 190 | 160 | |
| 最大保壓壓力 | MPa | --- | --- | --- | --- | --- | --- | 280 | 280 | 220 | 190 | 160 | 130 | |
| 最大射出速度 | mm/s | --- | 200 | |||||||||||
| 螺桿最大轉速 | min -1 | --- | 300 | |||||||||||
| 射出規格 | --- | 330mm/s 規格(小容量射出) | 330mm/s 規格 | |||||||||||
| 最大射出壓力(高填充模式） | MPa | 340 | 340 | 320 | 270 | 220 | --- | 380 | 345 | 280 | --- | --- | --- | |
| 最大射出壓力 | MPa | 260 | 260 | 240 | 220 | 190 | 160 | 280 | 280 | 260 | 220 | 190 | 160 | |
| 最大保壓壓力 | MPa | 260 | 260 | 220 | 200 | 170 | 140 | 280 | 280 | 260 | 220 | 190 | 160 | |
| 最大射出速度 | mm/s | 330 | 330 | |||||||||||
| 螺桿最大轉速 | min -1 | 450 | 400 | |||||||||||
| 射出規格 | --- | 500mm/s 規格(小容量射出) | ||||||||||||
| 最大射出壓力(高填充模式） | MPa | 340 | 320 | 280 | --- | --- | --- | --- | --- | --- | --- | --- | --- | |
| 最大射出壓力 | MPa | 260 | 260 | 240 | 220 | 170 | --- | --- | --- | --- | --- | --- | --- | |
| 最大保壓壓力 | MPa | 260 | 260 | 220 | 200 | 170 | --- | --- | --- | --- | --- | --- | --- | |
| 最大射出速度 | mm/s | 500 | --- | --- | ||||||||||
| 螺桿最大轉速 | min -1 | 450 | --- | --- | ||||||||||
| 射出規格 | --- | 1200mm/s 規格(高速射出) | ||||||||||||
| 最大射出壓力 | MPa | 400 | 380 | 350 | 270 | --- | --- | --- | --- | --- | --- | --- | --- | |
| 最大保壓壓力 | MPa | 350 | 250 | 210 | 160 | --- | --- | --- | --- | --- | --- | --- | --- | |
| 最大射出速度 | mm/s | 1200 | --- | --- | --- | |||||||||
| 螺桿最大轉速 | min -1 | 450 | --- | --- | --- | |||||||||
思誠資源為您提供：FANUC發那科 α-S150iA 150噸位大型進口注塑機的采購報價、FANUC(發那科)α-S150iA型號參數、規格圖片、PDF畫冊等資料，如您想了解更多關于FANUC(發那科)正品品牌的其他注塑機資料與產品貨期庫存、行情價格，就在思誠資源MRO商城。
