規格：防腐蝕，每組含4個M8的支撐腳和4個M5螺釘 應用：工件和電極 安裝：直接裝于毛坯的平面上
EROWA夾具定位片ER-011599/ER-050195

ER-011599，EROWA定位片100 M8 （一套10組）

ER-050195，EROWA定位片100 M8 （一組）

規格：防腐蝕，每組含4個M8的支撐腳和4個M5螺釘

應用：工件和電極

安裝：直接裝于毛坯的平面上

ER-011599 Centering Plate 100 M8 (set of 10 pieces)

ER-050195 Center ing plate 100 M8 (1 Unit)

Version: Corrosion-resistant, including 4 supporting fee M8 and 4 X M5 screws per plate.

Application: Workpieces and electrodes.

Mounting: Mounted directly on of blank plane surface of blank

Centering plate 100 M8

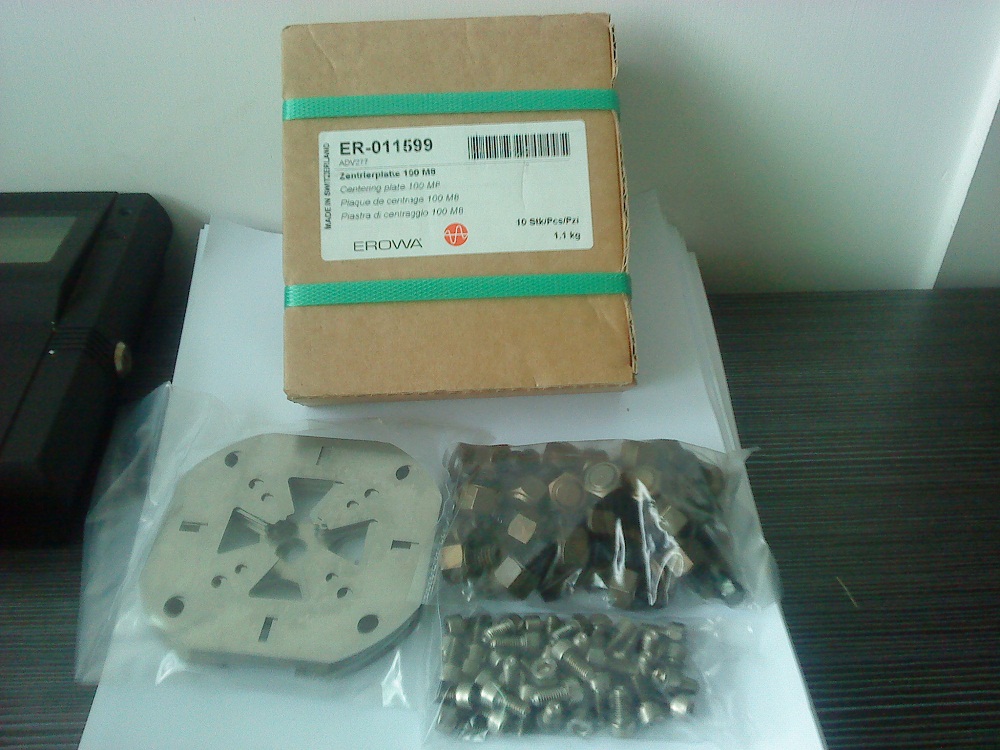

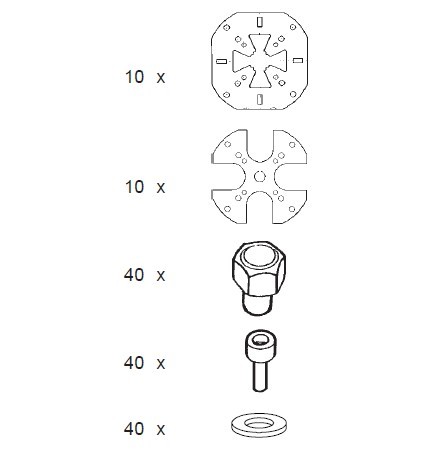

Check package contents
Centering plate
Base plate
Support foot M8
Bolts M5
Washer ? 5.3 / 10 x 1

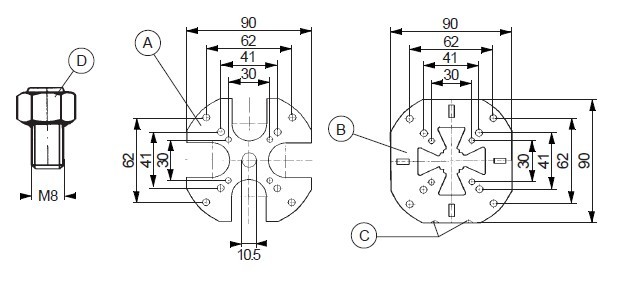

Technical data

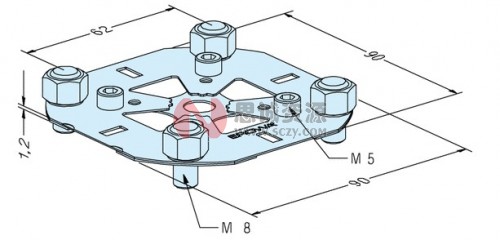

Application: for electrodes of min. ? 100mm and 90mm

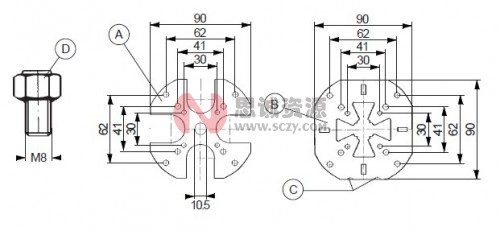

A ) Base plate(thickness: 0.6mm)
B ) Centering plate (thickness: 0.6mm)
C ) Positioning mark and reference marks
D ) Support foot SW13 M8x16

Setting up
Preparations
- Machine the surface to which centering plate is to be fitted. Note that turning provides a more even surface than milling.

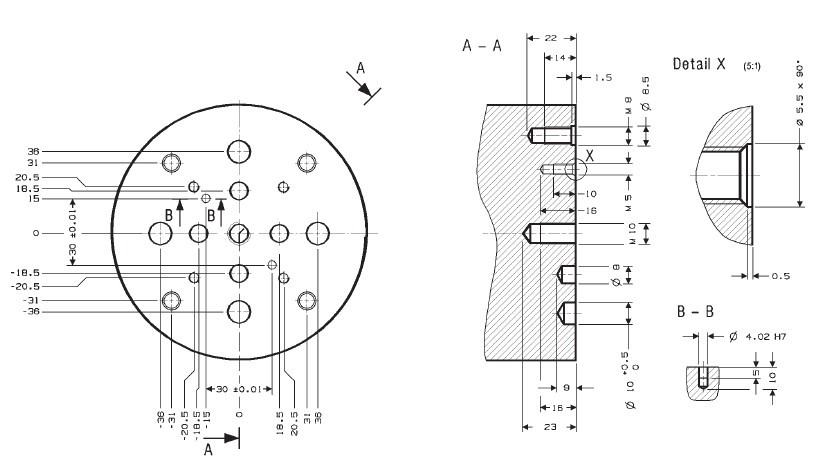

- Drill holes according to the pattern shown below. For this purpose, we supply a drill template ER-010710 (option) as an option. The hole pattern can also be produced with the help of an CNC machine.

Note:
The ? 8mm and ?10mm holes are to accommodate the prismatic spigots of the rapid-action chuck and must therefore be drilled in any case.
The ? 4H7 holes are only necessary if the centering plate must be aligned in relation to a given reference surface.

Assembly

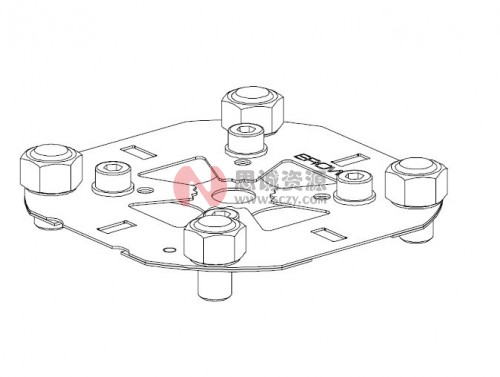

Put base plate on the hole pattern of the blank.
Put centering plate on top in the congruent position.

Note:
The positioning marks (A) must be visible on the side of the support feet. If a reference surface has been given, the reference surface has been given, the reference marks must refer to it.

- If necessary, align centering plate with ?4 straight pins. Remove the straight pins after the alingnment.
- Turn the 4 support feet into the M8 threads (C) and tighten to 35 Nm.
- Turn the 4 screws M5 (B) with washers (G) into the M5 threads (B) and tighten to 6Nm.

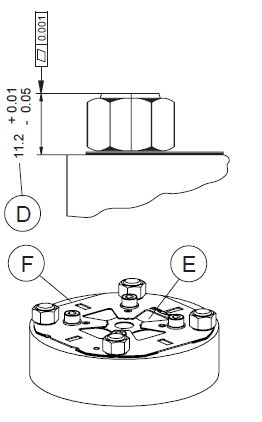

After assembly, grind the support feet to the tolerated measurement of 11.2 +0.01/-0.05 (D). Try to achieve an evenness of 0.001mm. If necessary, lap the support feet.

Note:
Measuring points on the mounting surface are possible in the notches (E) or beside the plates (F), depending on the version.
